- With an individually switchable horizontal and vertical laser line
- Specially coated glasses ensure clean and high-precision laser lines.
- Green laser diode

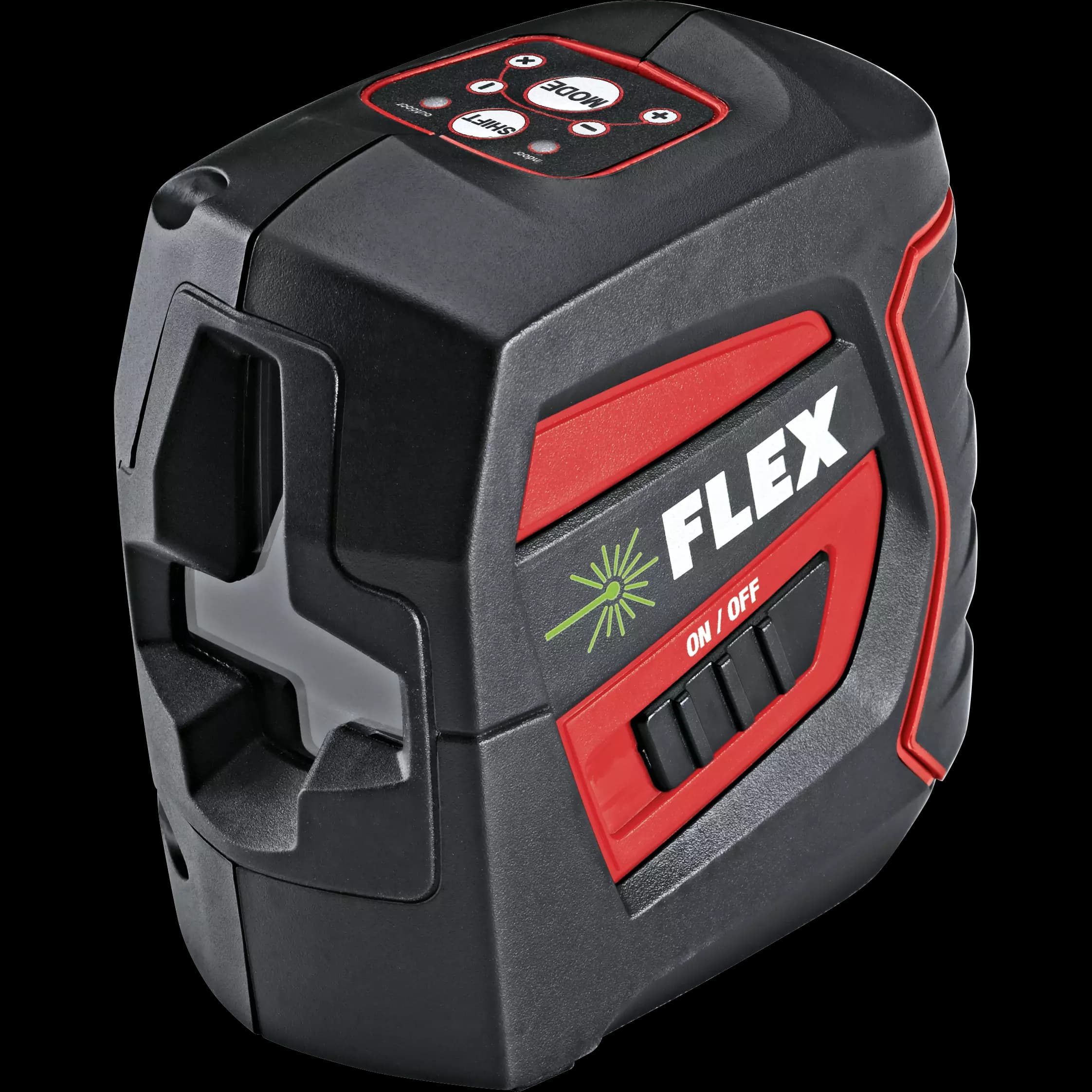

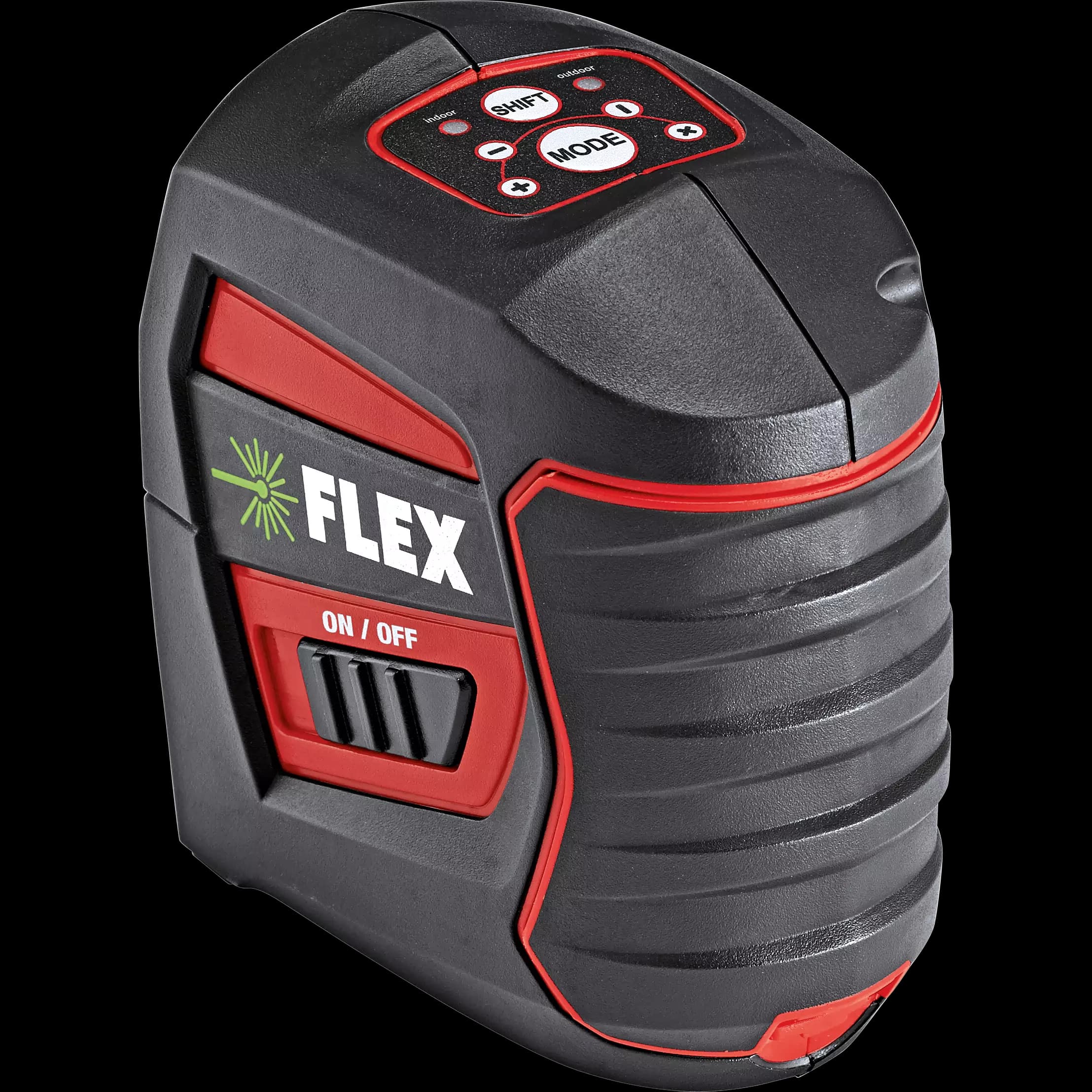

ALC 2/1-G/R
Self-levelling crossline laser with receiver mode
Standard supply
- 1× Laser wall bracket (428167)
- 1× USB-cable
- 1× USB-charger
- 1× Carrying bag
Technical data
| Number of lines, horizontal | 1 Cont. |
|---|---|
| Number of lines, vertical | 1 Cont. |
| Visible range, horizontal lines | 110 ° |
| Visible range, vertical lines | 110 ° |
| Laser class | 2 |
| Max. operating range | 50 m |
| Max. operating range with receiver | 70 m |
| Precision | ± 0,3 mm |
| Self-levelling range | 4 ° |
| Operating time | 10 h |
| Temperature range | -5 - +50 °C |
| Protection class | IP54 |
| Power supply | Integrated battery |
| Dimensions WxLxH | 57 x 96 x 96.5 mm |
| Weight | 0.36 kg |
