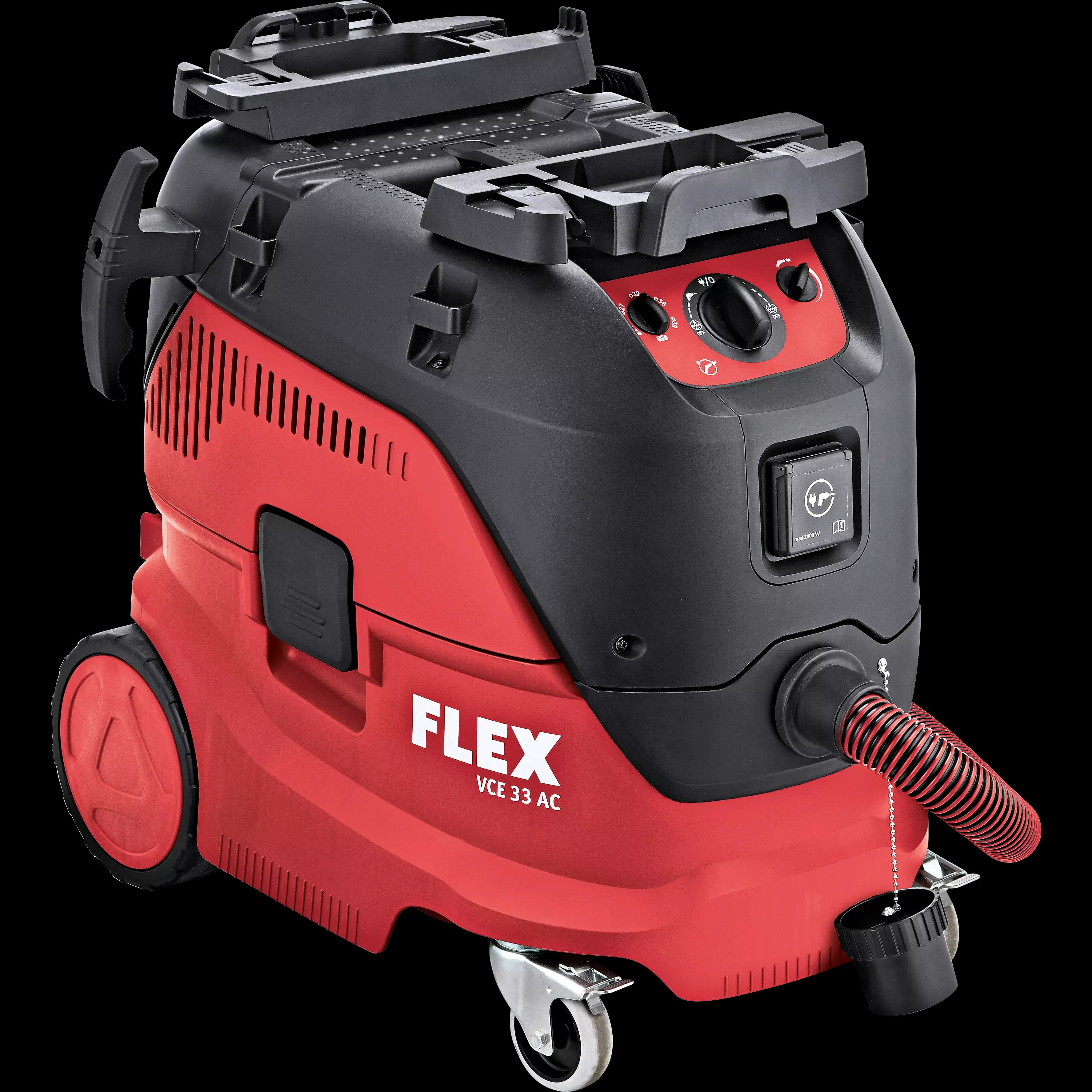

VCE 33 M AC 230/BS

Safety vacuum cleaner with automatic filter cleaning system, 30 l, class M

Technical data
Power consumption1200 W
Voltage230 V
Frequency50/60 Hz
Vacuum cleaner flow rate4500 l/min
Max. vacuum25000 Pa
Filter surface area5000 cm²
Tank volume30 L
Liquid capacity17 L
Suction power controlmechanical
Hose length4m m
Number of suction motors1 Cont.
Cable length7.5 m
Dimensions WxLxH565 x 385 x 565 mm
Weight15.2 kg

Advantages

  • Adapter plate for fixing L-BOXXes and Tanos systainers on the head of the vacuum cleaner
  • The high-performance turbine ensures both a high suction capacity and a high vacuum. The outcome is an excellent extraction result
  • Continuous automatic flat filter cleaning ensures no loss of suction
  • The flat-fold filter with Teflon coating / nanocoating allows optimum use of the tank volume
  • With permanent socket and electronic automatic on/off switch
  • Flow sensor technology monitors the flow rate and emits a visual and audible signal to indicate any drop below the statutory minimum value of ≤ 20m/s
  • The flow rate control via the rotary switch minimises possible vacuums on the surface during intermediate and finish sanding
  • Suction diameter selector switch for adjusting the optimum flow rate
  • Suitable for wet vacuuming: with electronic liquid level control
  • Soft start stops any voltage peaks at the start and the run-on feature (15 sec. overrun) empties any remaining dust in the vacuum hose
  • Double-walled sturdy container with integrated grip recess for emptying the container easily
  • Dust-protected antistatic finish prevents electric charging of the suction hose
  • Equipped with large wheels and two swivel guide rollers made of metal
  • Separate motor air cooling duct with coarse dirt filter. Protects the turbine against the ingress of ambient air and thereby extends the service life. (Fine dust filter PES available as an accessory)
  • Simple filter change without removing the suction head
  • With hose retainer and expander for easy, quick securing of the power cable
  • With 4 clamping loops (2 on each side ) for attaching straps and a giraffe holder
  • Recommendation: When working with a filter bag turn off the automatic cleaning system. When using a disposable bag leave the system on
  • Class M safety vacuum cleaner, suitable for all dusts with OEL values ≥ 0.1 mg/m³. Specifically for mineral and timber dusts (also beech and oak)

Matching accessories

  • SH-C 32x4m AS/NL
    Antistatic suction hose with auxiliary air control
  • VCE-AP
    L-BOXX® holder
  • FE VCE PES L/M/H
    PES flat folded filter
  • FS-F VCE 33-44 L/M VE5
    Fleece filter bag
  • ES-PP VCE L/M VE5
    Disposal bag
  • SAD-C D25-32 AS
    Adapter
  • SAD-C 32 AS
    Adapter
  • SAD 27 AS
    Adapter
  • SAD D25-32 AS
    Adapter
  • SAD D32 WS/WSK
    Special adapter
  • SAD-C WS/WSE
    Special adapter
  • SAD D32-28
    Special adapter
  • SAD D32-36
    Coupling bush
  • SAD 32/32
    Coupling bush
  • SHV-C 32x0,5m
    Suction hose extension
  • CLE 32 AS
    Cleaning set
  • K-C 32 KU AS
    Elbow
  • VFE VCE L/M/H
    PES flat folded filter
  • V 36x350 INOX VE3
    Extension tube
  • BN 36x220
    Brush nozzle
  • RN 36x120
    Round brush
  • FD D36 90x120mm
    Surface nozzle
  • KN 36x260
    Combination floor nozzle
  • SAM-C R32 AS/NL
    Suction hose snap coupling repair kit
  • FN-AL 36x370
    Floor nozzle with rollers
  • BL-FN-AL 36x370 VE2
    Brush strip
  • GL-FN-AL 36x370 VE2
    Rubber strip
  • FS-LL VCE 33/44
    Longlife filter sack
  • FN D36x300
    Floor nozzle
  • CNW 36x400
    Clip floor nozzle with rollers
  • BL-CNW 36x400 VE2
    Brush strip
  • GL-CNW 36x400 VE2
    Rubber strip
  • SAD BS D32
    Drill dust adapter
  • Cable clip, 1 piece
    Cable clip
  • SH-C 32
    Snap-ring grey
  • SAD-32 VC/VCE AS
    Rotating vacuum adapter
  • CLE 32 AS + L-Boxx
    Cleaning set
  • SH-CF 32 x 4m AS/NL
    Antistatic suction hose with auxiliary air control
  • SH-C 32x4m NL
    Suction hose with auxiliary air control
  • SH 32x4m WS 702
    Suction hose
  • SH-FC 32
    Clip-on quick clamping ring red
  • VCE-TH
    Handle
  • VCE-AP Air
    L-BOXX® Air holder
  • VCE-GE Fix
    Giraffe holder
  • SAM-C 32 AS/NL
    Threaded ring clip with auxiliary air control
  • SAD-C D36/27 AS/NL
    Clip adapter
  • SAD-FC 32
    Fast clip adapter
