- 900 watt hammer drill and chisel hammer in D-build with high impact energy and low vibrations

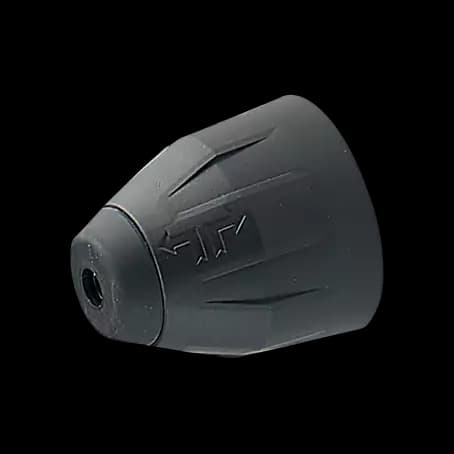

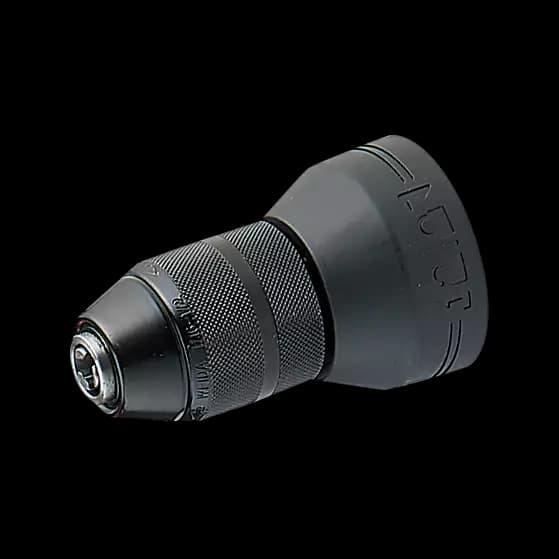

- Drilling chuck can be removed without tools
- Rotation stop for chiselling

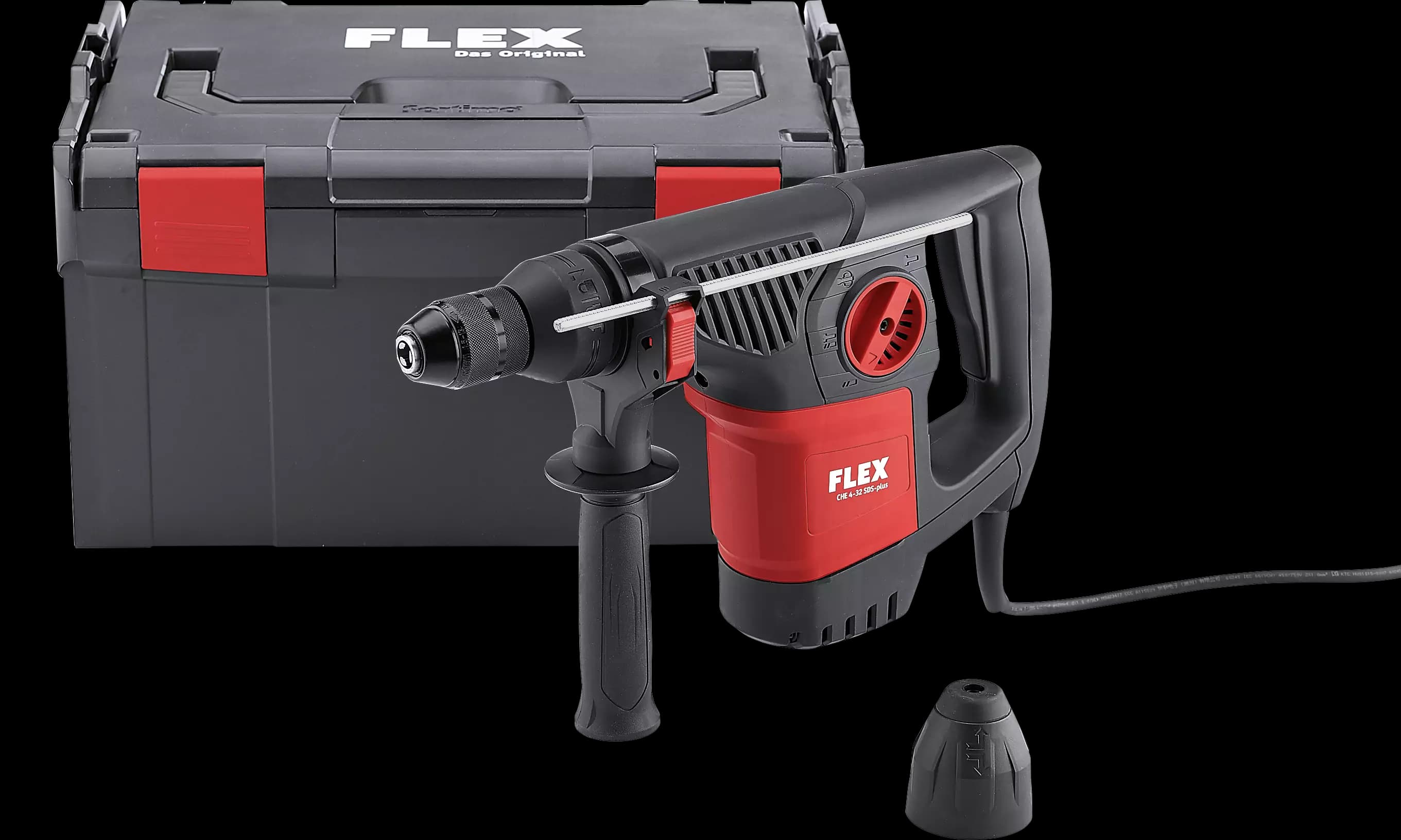

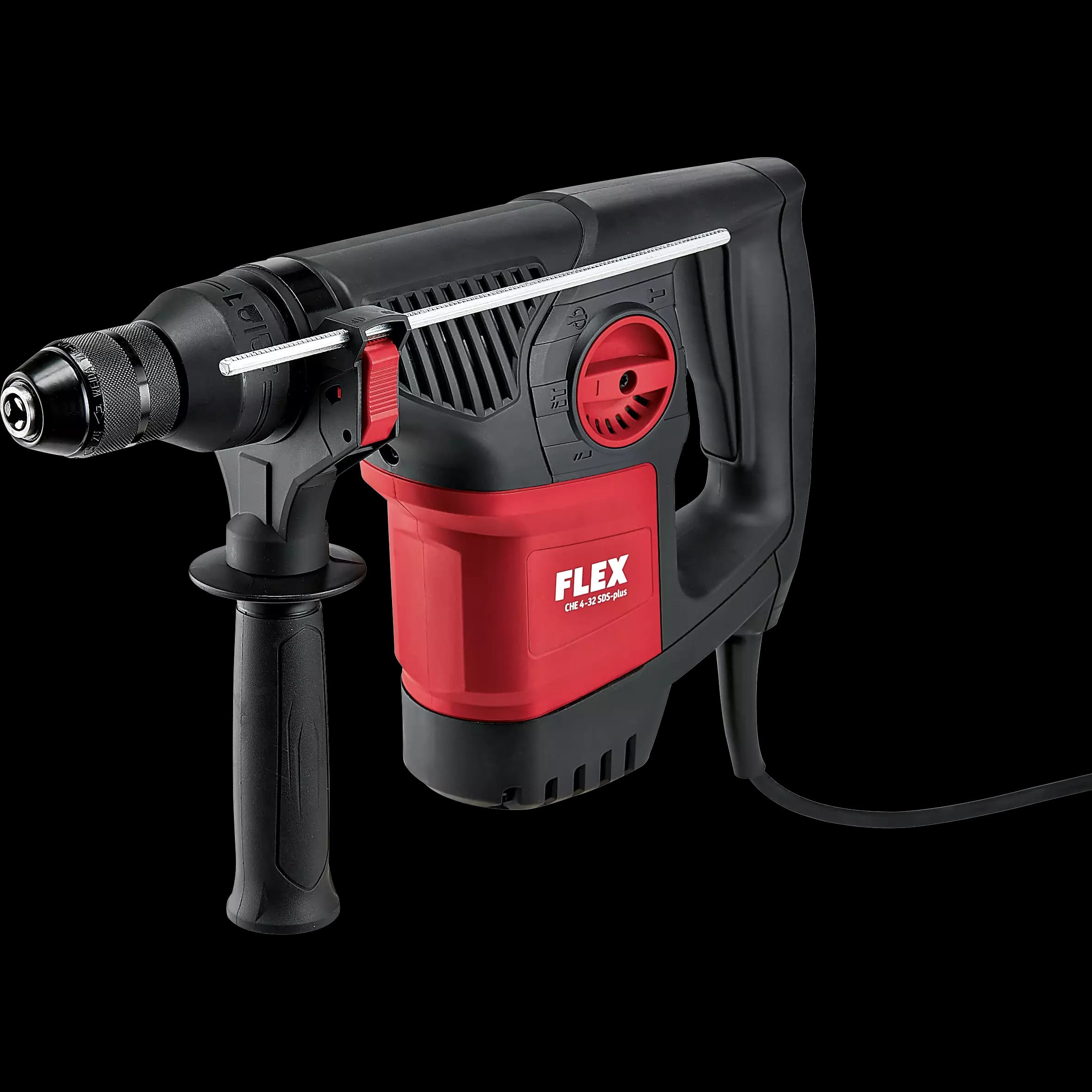

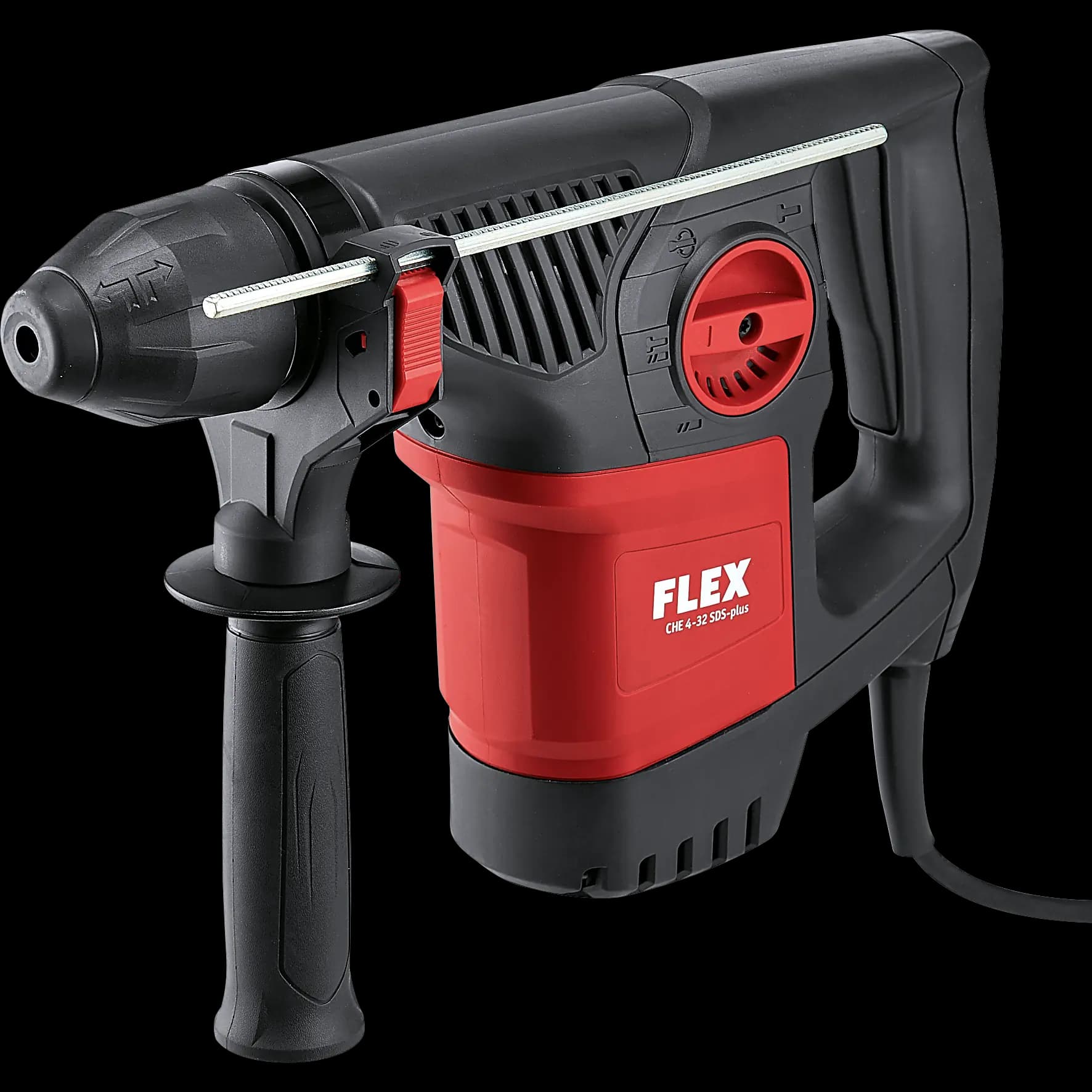

CHE 4-32 R SDS-plus
Universal rotary hammer drill, 4 kg, SDS-plus
![](/_next/image?url=https%3A%2F%2Fhub.flex-tools.com%2F_f%2Fdcb%2Fdcb5f5e8f276e920b47f345b847d7568b45e4fdb%2FPRO_PHO_MAI_CHE4-32-R-SDS-PLUS.webp&w=3840&q=75)
![](/_next/image?url=https%3A%2F%2Fhub.flex-tools.com%2F_f%2F94f%2F94f62f22b9226cb5dced3c47d018632dc1a55e97%2FPRO_PHO_DET_CHE4-32-R-SCHNELLSPANNBOHRFUTTER_%2523SALL_%2523AIN_%2523V1.webp&w=3840&q=75)
![](/_next/image?url=https%3A%2F%2Fhub.flex-tools.com%2F_f%2F2c2%2F2c2ccd844cbcea9bddd2df3119f1dfbeaf4b4872%2FPRO_PHO_CAC_CHE4-32-R-SCHNELLSPANNBOHRFUTTER-VOR-KOFFER_%2523SALL_%2523AIN_%2523V1.webp&w=3840&q=75)
![](/_next/image?url=https%3A%2F%2Fhub.flex-tools.com%2F_f%2F5ee%2F5ee2c86c8097bd1d724dda2e34fba845a6be3c2c%2FPRO_PHO_CAC_CHE4-32-R-SDS-PLUS-VOR-KOFFER_%2523SALL_%2523AIN_%2523V1.webp&w=3840&q=75)

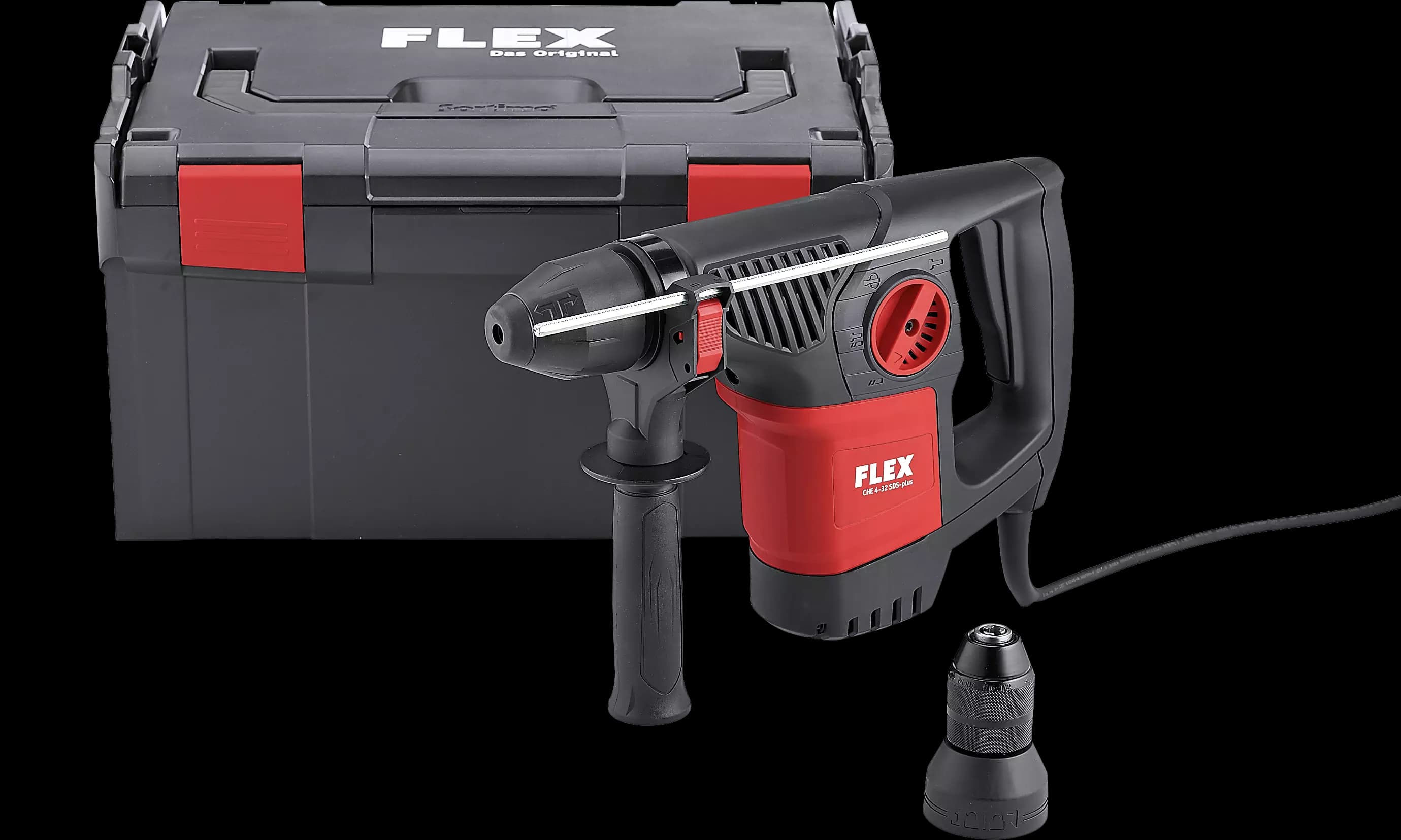

Standard supply
- 1× BF CHE 4 (468878)
- 1× BF SDS-plus CHE 4 (468851)
- 1× Side handle Size CHE 4-32 (436232)
- 1× Depth stop CHE 2-28 SDS pl (417769)
- 1× TK-L 238 (414093)
- 1× TKE CHE4-32 R (469041)
Technical data
Power consumption | 900 W |
---|---|
Voltage | 230 V |
Frequency | 50/60 Hz |
Tool holder, drill and chisel | SDS-plus |
Max. single impact energy | 4,8 J |
No-load speed | 0 - 850 rpm |
No-load blows | 0 - 3700 1 rpm |
Chuck clamping width | 1,5 - 13 mm |
Max. drilling diameter in concrete | 32 mm |
Max. drilling diameter in masonry (drill bit) | 82 mm |
Max. drilling diameter in wood | 32 mm |
Max. drilling diameter in steel | 13 mm |
Cable length | 4,0 m |
Dimensions WxLxH | 400 x 86 x 235 mm |
Weight | 4,6 kg |
