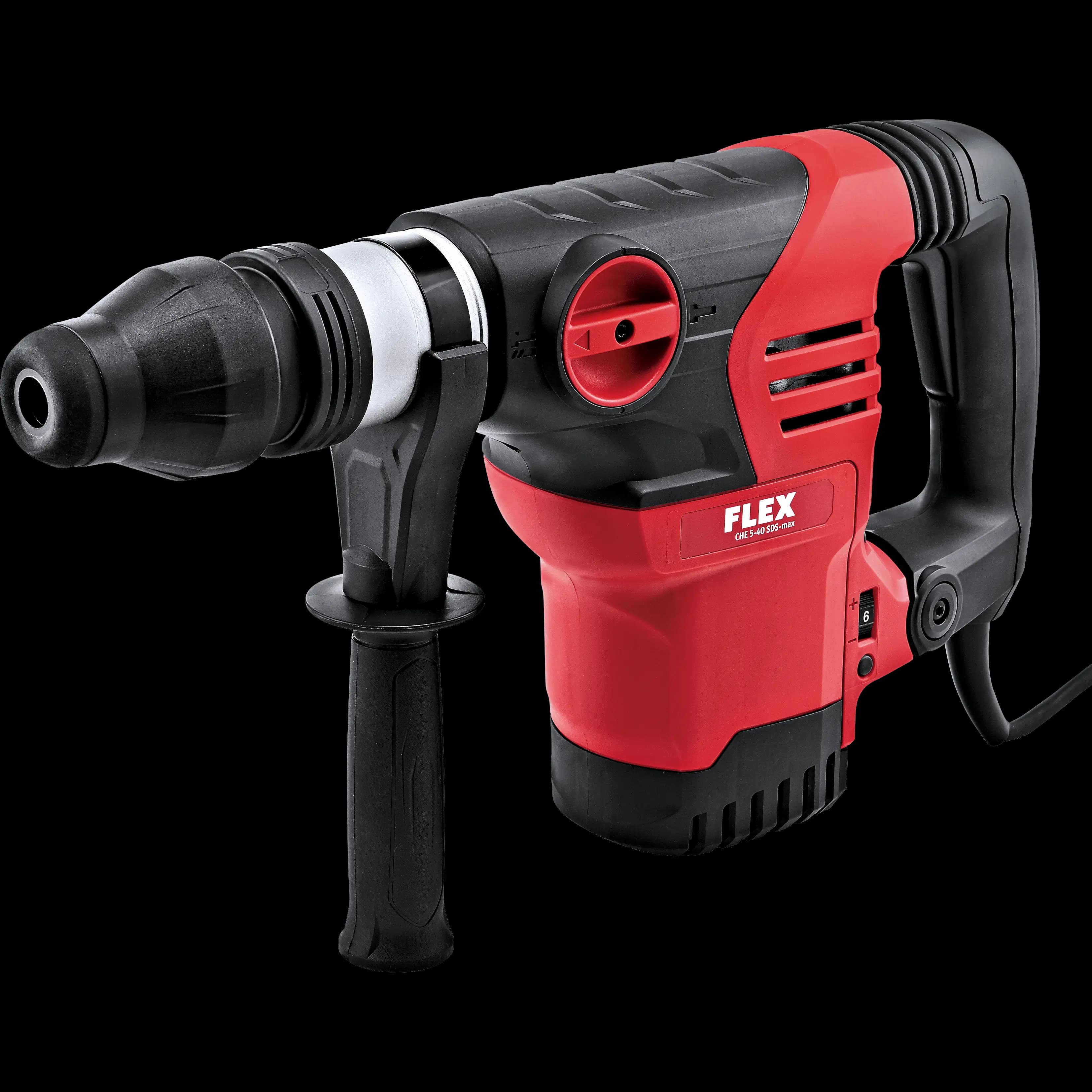

CHE 5-40 SDS-max

Universal rotary hammer drill, 5 kg, SDS-max

Order number: 439665

EAN No.: 4030293191839

Standard supply
  • 1× Grease tube DH 5 SDS-max (370894)
  • 1× Handle

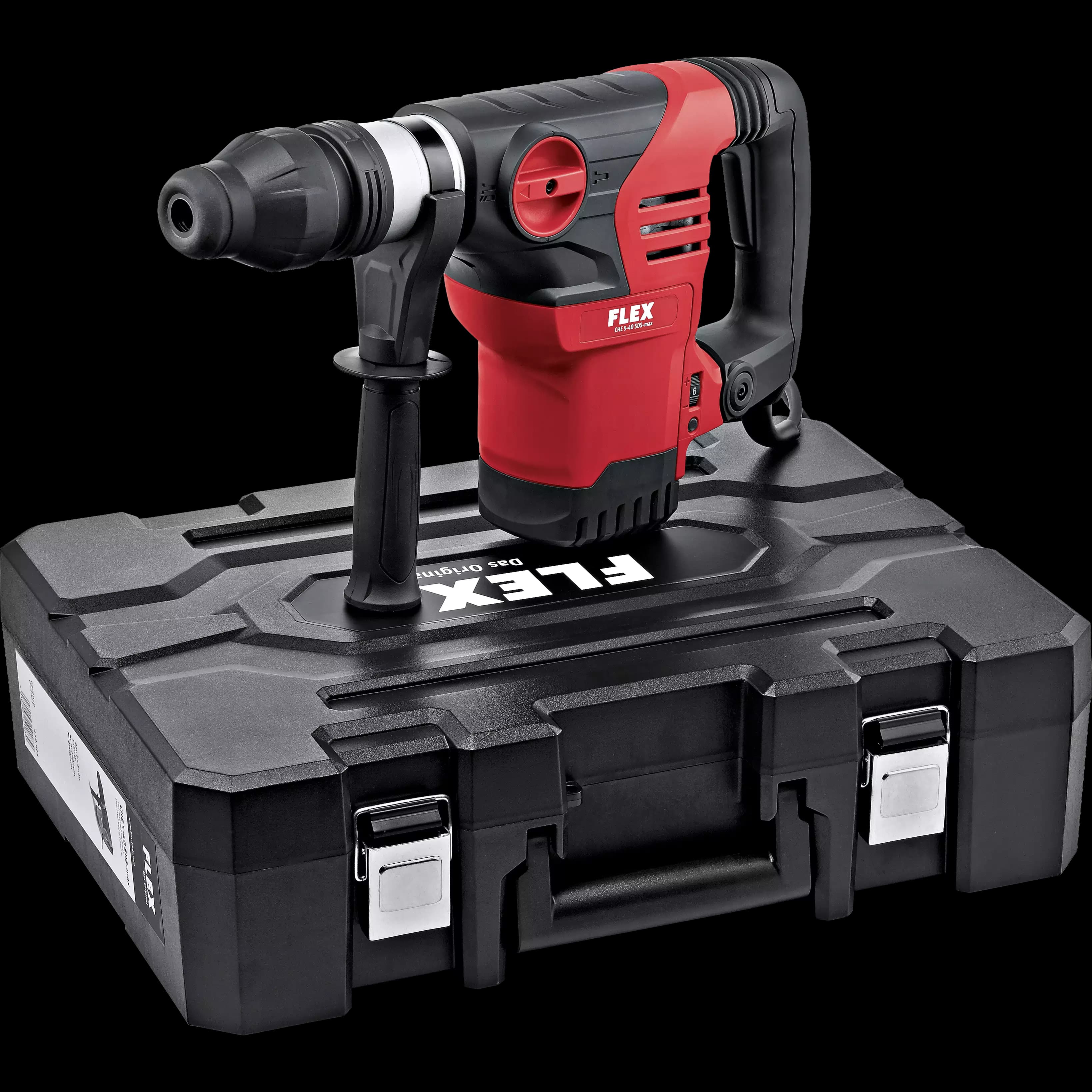

  • 1× Carrying case
Local dealers
Technical data
Power consumption1150 W
Voltage230 V
Frequency50/60 Hz
Tool holder, drill and chiselSDS-max
Max. single impact energy10 J
No-load speed0 - 350 rpm
No-load blows1300 - 2900 1 rpm
Max. drilling diameter in concrete40 mm
Max. drilling diameter in masonry (drill bit)90 mm
Max. drilling diameter in wood32 mm
Max. drilling diameter in steel13 mm
Cable length4.0 m
Dimensions WxLxH475 x 100 x 260 mm
Weight6.4 kg
Downloads

Advantages

  • 1150 watt hammer drill and chisel hammer in D-build with high impact energy and low vibrations
  • Function switch with three functions: hammer drilling, chiselling, chisel adjustment
  • Rotation stop for chiselling
  • Ideal for hammer-drilling, diameter 40 mm in masonry and concrete for composite or injection anchoring systems and through-holes
  • For chiselling work when removing plaster and tiles
  • Variable speed, continuous adjustment from 1-6 with “Power Control LED indicator
  • Safety slip clutch: offers protection if the core drill is jammed
  • Decoupled, ergonomic handle with rubberised grip surface. Vibrations are reduced by a sprung damper and additional vibration damping between the housing and handle

Matching accessories

  • 6 Versions
    SDS 2-max drill
  • 15 Versions
    SDS 4-max drill
  • SAD BS D32
    Drill dust adapter
  • SAD BS D32 D67
    Drill dust adapter
  • MEI-FA 25x400 SDS-max
    SDS-max flat chisel
  • MEI-SI 400 SDS-max
    SDS-max sharp chisel
  • HD 4-C Set 1 SDS-max VE4
    Hammer drill bit set SDS-max 4-cutting edges
  • HD 4-C Set 2 SDS-max VE4
    Hammer drill bit set SDS-max 4-cutting edges
  • HD 4-C Set 3 SDS-max VE5
    Hammer drill bit set SDS-max 4-cutting edges
  • CH-PO 250 SDS-max
    SDS-max sharp chisel Xtreme
  • CH-FL 24x400 SDS-max
    SDS-max flat chisel Xtreme
  • CH-SC 50x400 SDS-max
    SDS-max broad-flat chisel Xtreme
  • CH-TI 50x300 SDS-max
    SDS-max tile chisel Xtreme
  • CH SET SDS-max VE2
    SDS-max chisel set
  • CH SET SDS-max VE3
    SDS-max chisel set
