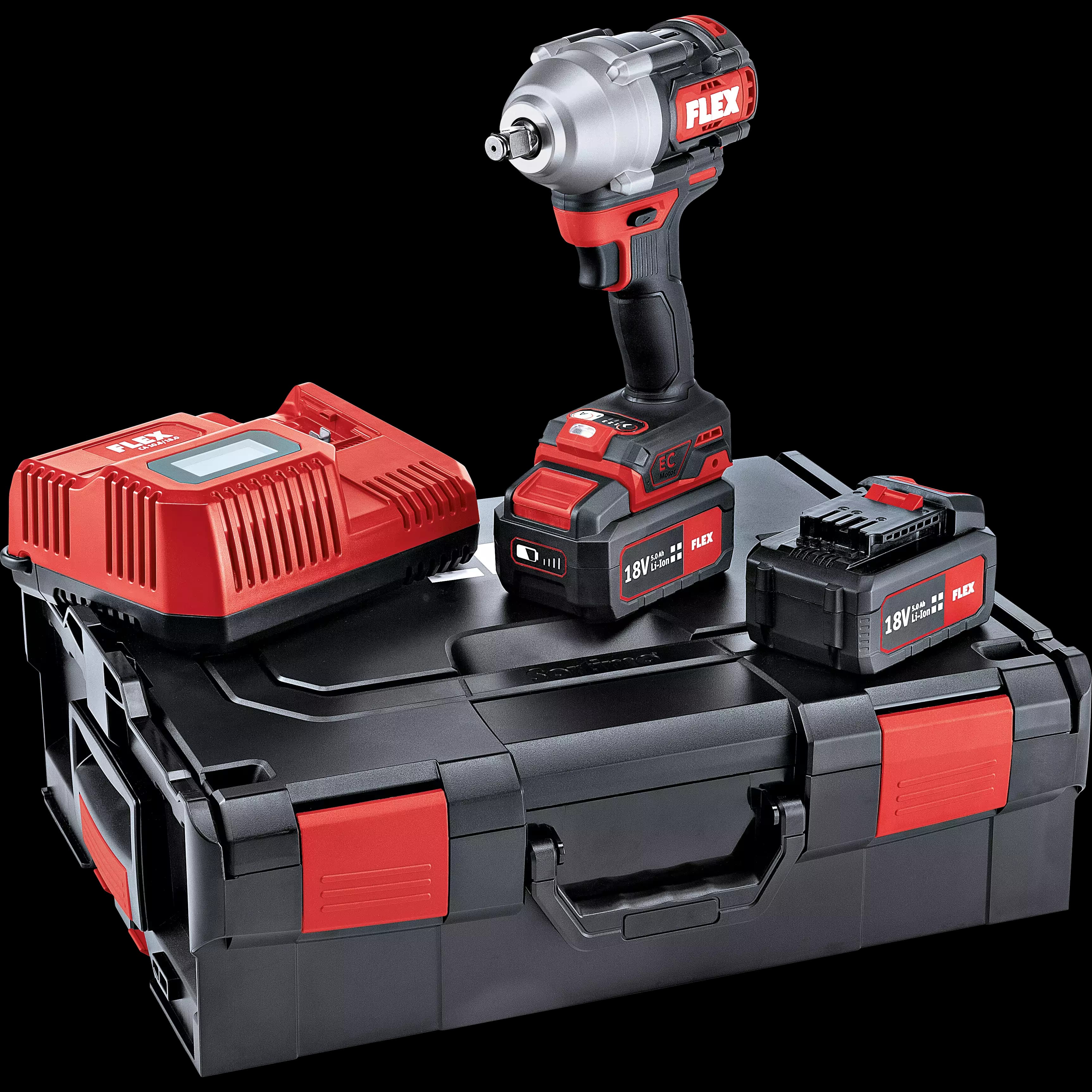

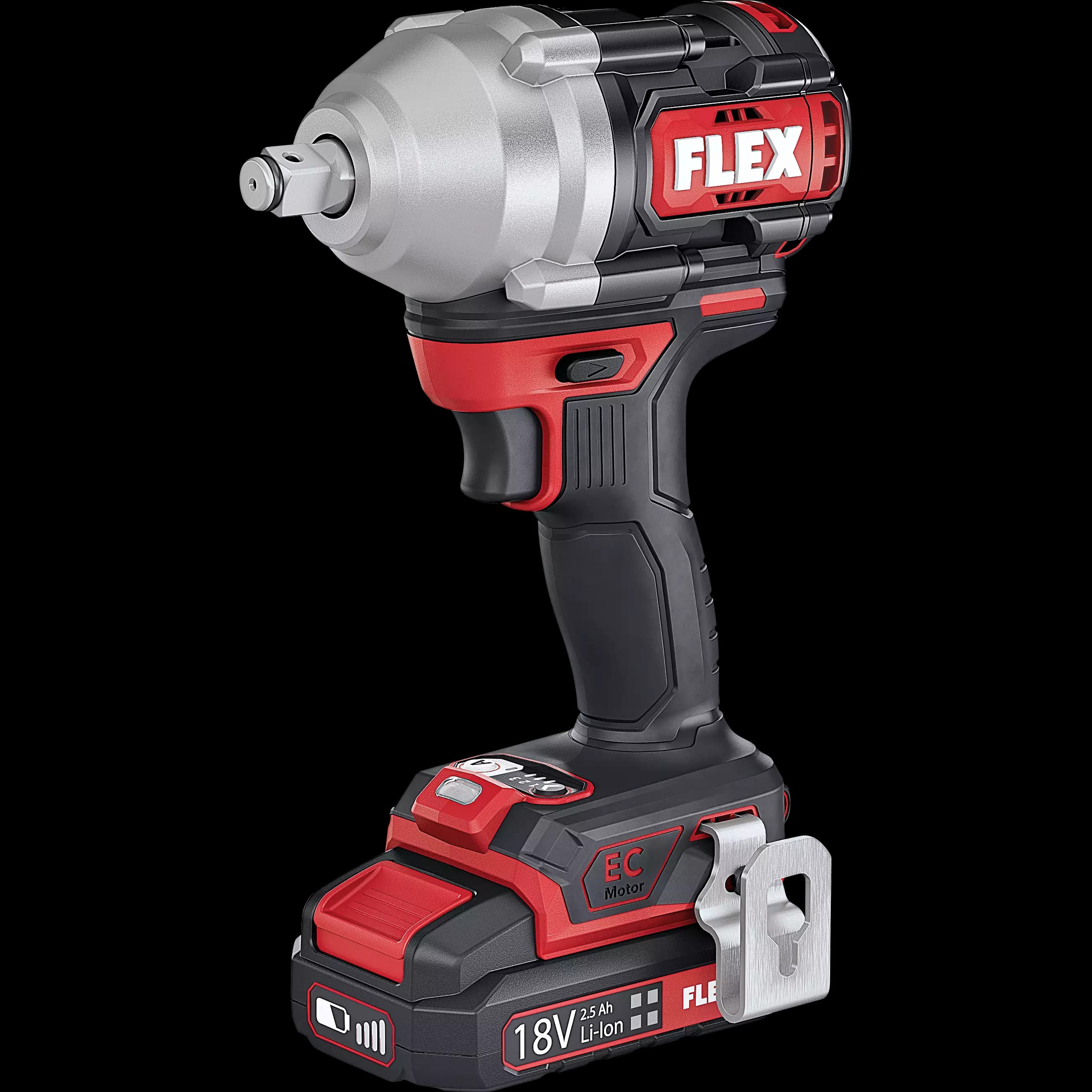

IW 1/2" 750 18.0-EC/5.0 Set

Cordless impact wrench 18,0 V

Order number: 530233

EAN No.: 4030293242432

Standard supply
Local dealers
Technical data
Battery voltage18 V
Battery capacity2,5 / 5,0 / 8,0 Ah
Torque settings3 Steps
Max. torque, setting 1150 Nm
Max. torque, setting 2200 Nm
Max. torque, setting 3750 Nm
Max. loosening torque950 Nm
No-load speed, 1st gear0 - 500 rpm
No-load speed, 2nd gear0 - 1000 rpm
No-load speed, 3rd gear0 - 2100 rpm
No-load blows, setting 10 - 1000 1 rpm
No-load blows, setting 20 - 2000 1 rpm
No-load blows, setting 30 - 2450 1 rpm
Tool holder, impact drill1/2" outside
Dimensions WxLxH159 x 74 x 227 mm
Weight without battery pack1,9 kg
Downloads

Advantages

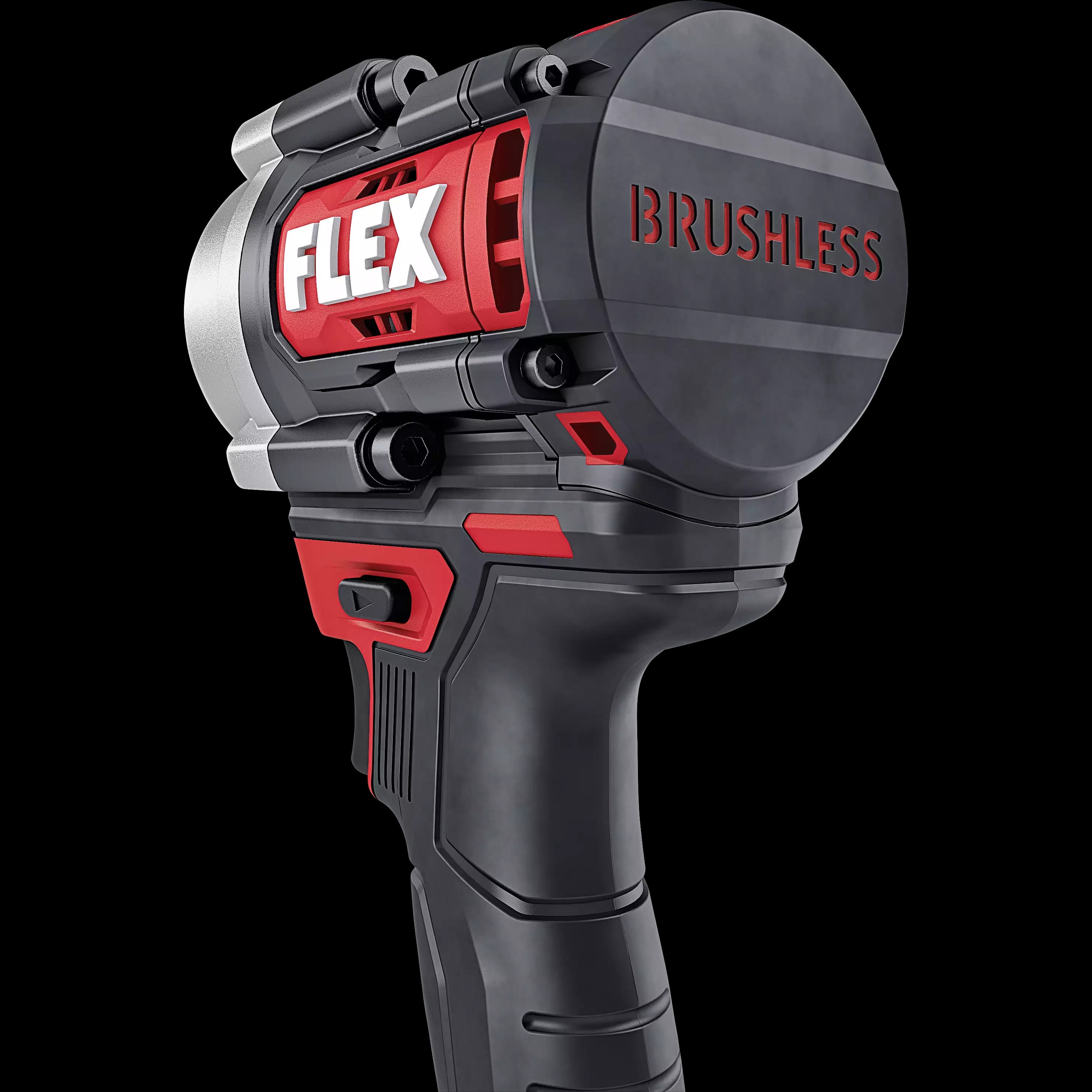

  • Brushless motor with greater efficiency and a longer service life
  • Electronic management system (EMS) protects the machine, extends the service life, and increases efficiency

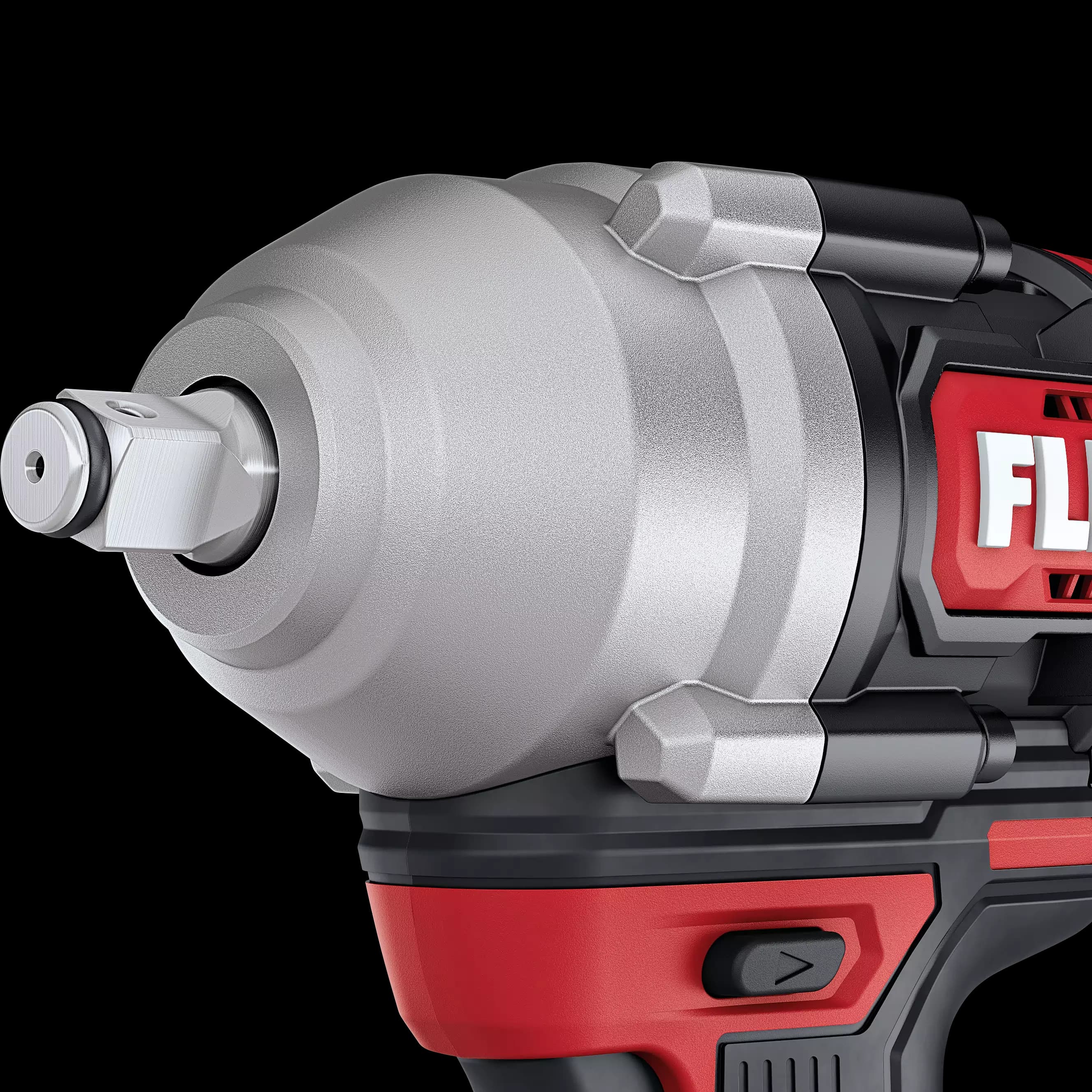

  • Tool holder square drive for 1/2" impact sockets.
  • Electronic quick-acting brake
  • Damping element seperates hand grip from motor, bringing significant reduction in vibration transmission
  • Powerful impact mechanism for maximum performance enables for example stuck or rusted screw connections to be loosened even in extreme applications

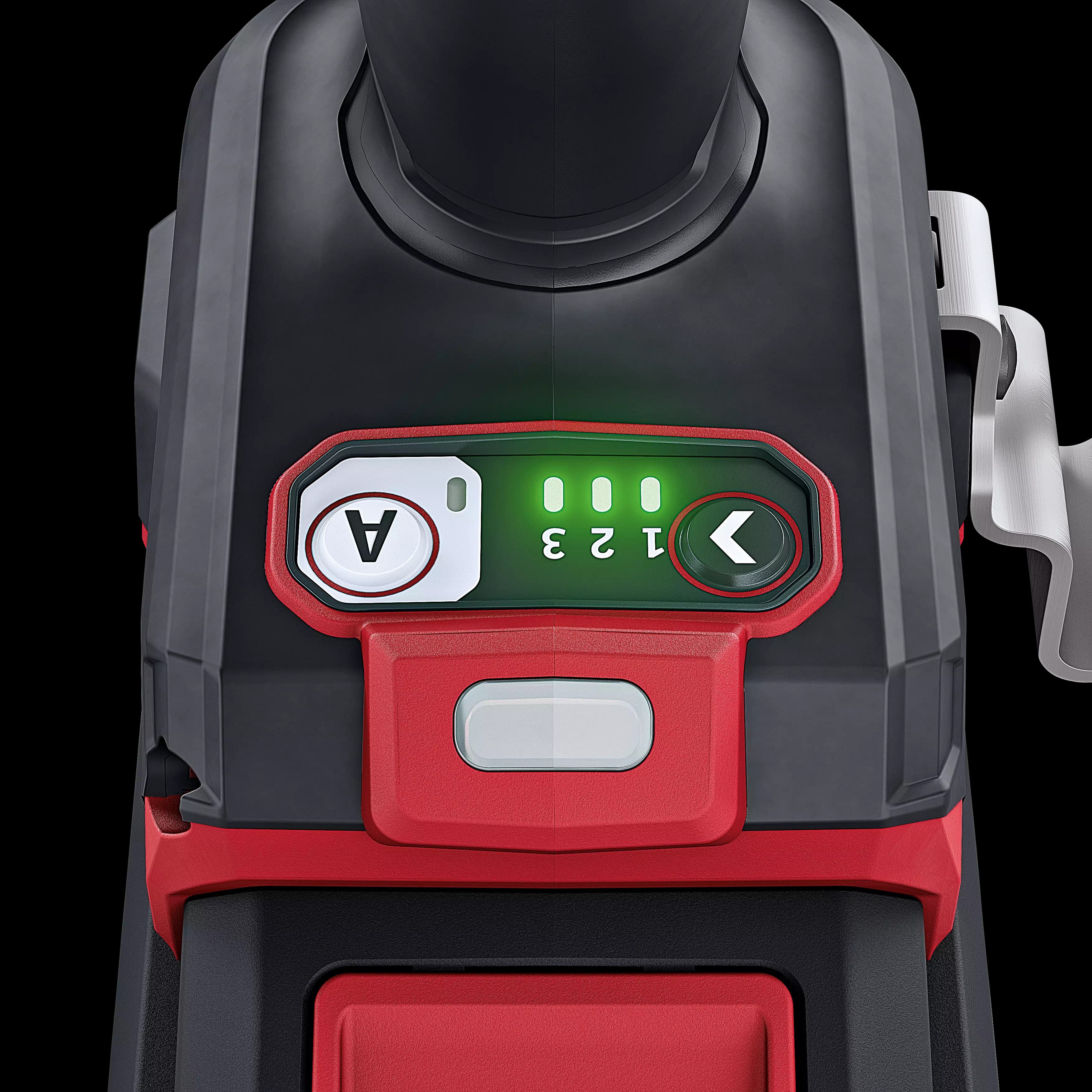

  • Speed command: Possibility of setting three different speed ranges for different applications and controlled tightening or loosening
  • Accelerator trigger with lock-off switch
  • Ergonomically designed, non-slip, soft grip handle

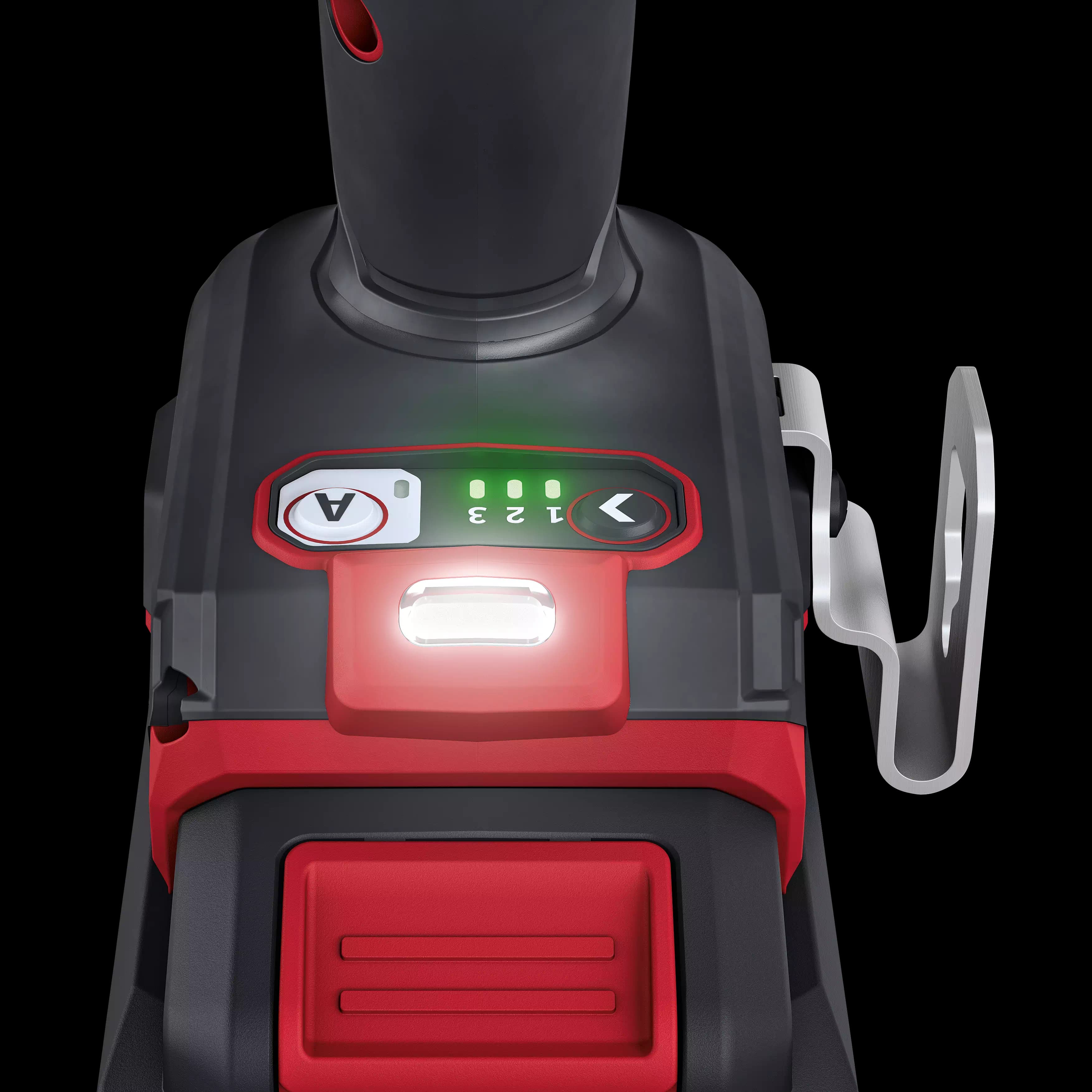

  • Integrated LED lamp with persistence function
  • LED battery capacity display
  • Right/left rotation with safety catch
  • Auto-Stop mode: When tightening, the machine stops as soon as the blow starts. When loosening, the machine stops as soon as the blow stops. Suitable to prevent over-tightening of the screw or nut.
  • Compact design with die-cast aluminium machine head. Extremely durable and impact-resistant
  • FLEX battery system: suitable for all FLEX 18 V battery packs

Matching accessories

  • Carrying case L-BOXX®
  • CA 10.8/18.0
    Rapid charger
  • FB L 700/400
    Carrying bag
  • TKE IW 1/2" 750 18.0-EC
    Case insert
  • 4 Versions
    Li-Ion rechargeable battery pack 18 V
  • AP 18/8.0
    Battery pack Li-Ion Power Plus
  • P-Set 55 R
    Power 55 R
  • P-Set 22 Q
    Power 22 Q
