- Brushless motor with greater efficiency and a longer service life
- Electronic management system (EMS) protects the machine, extends the service life, and increases efficiency
- 4-speed gearbox of up to 4200 rpm for maximum drilling and screwdriving efficiency

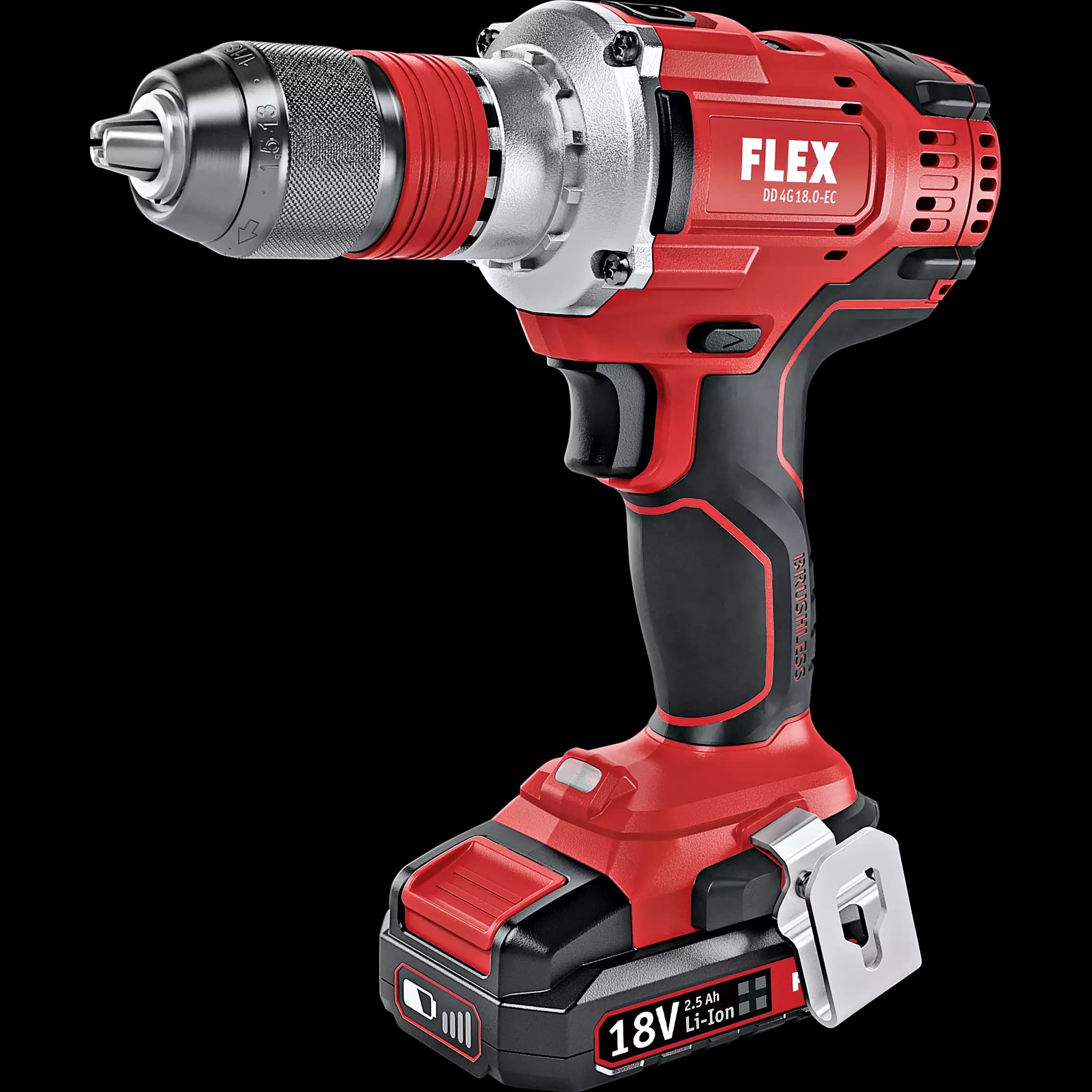

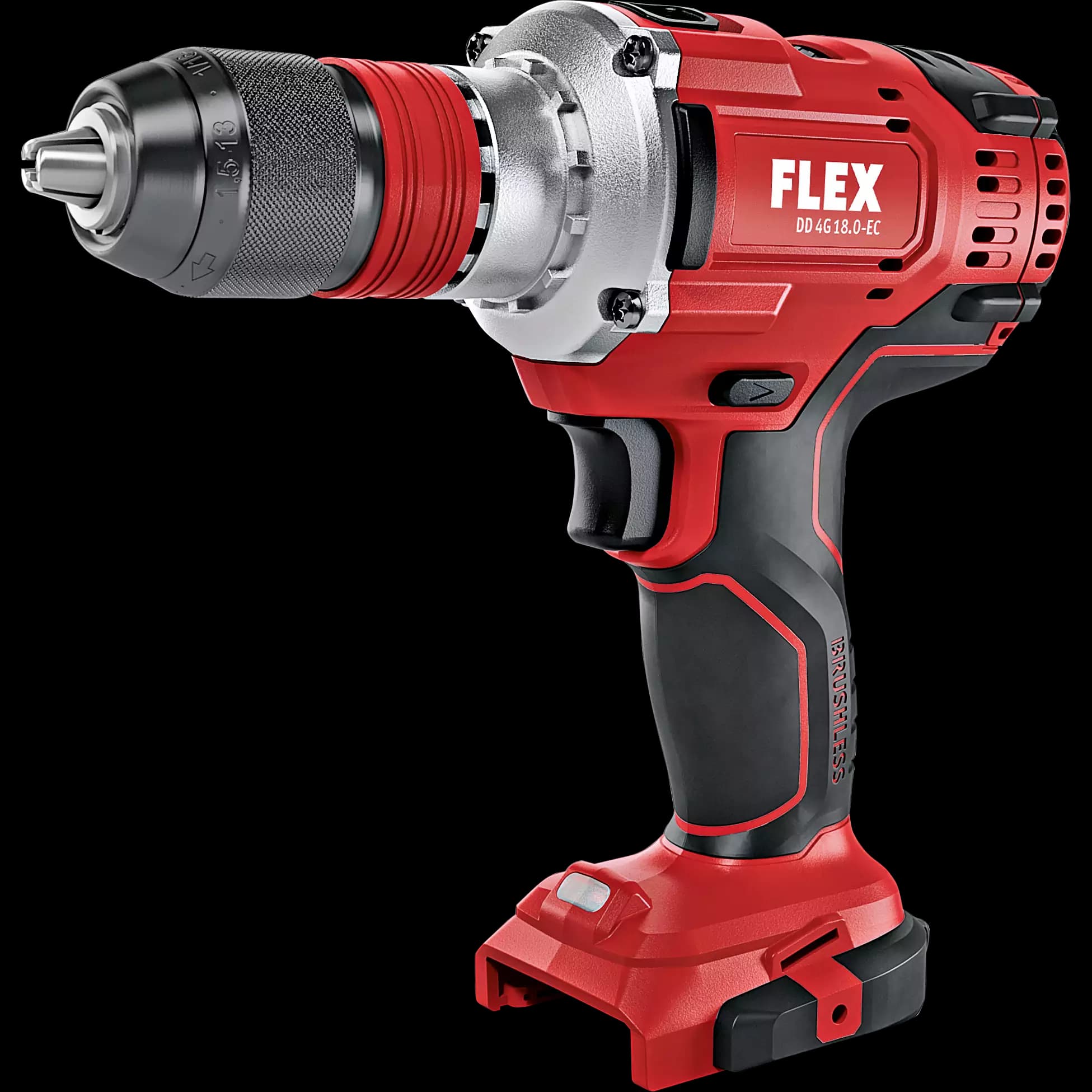

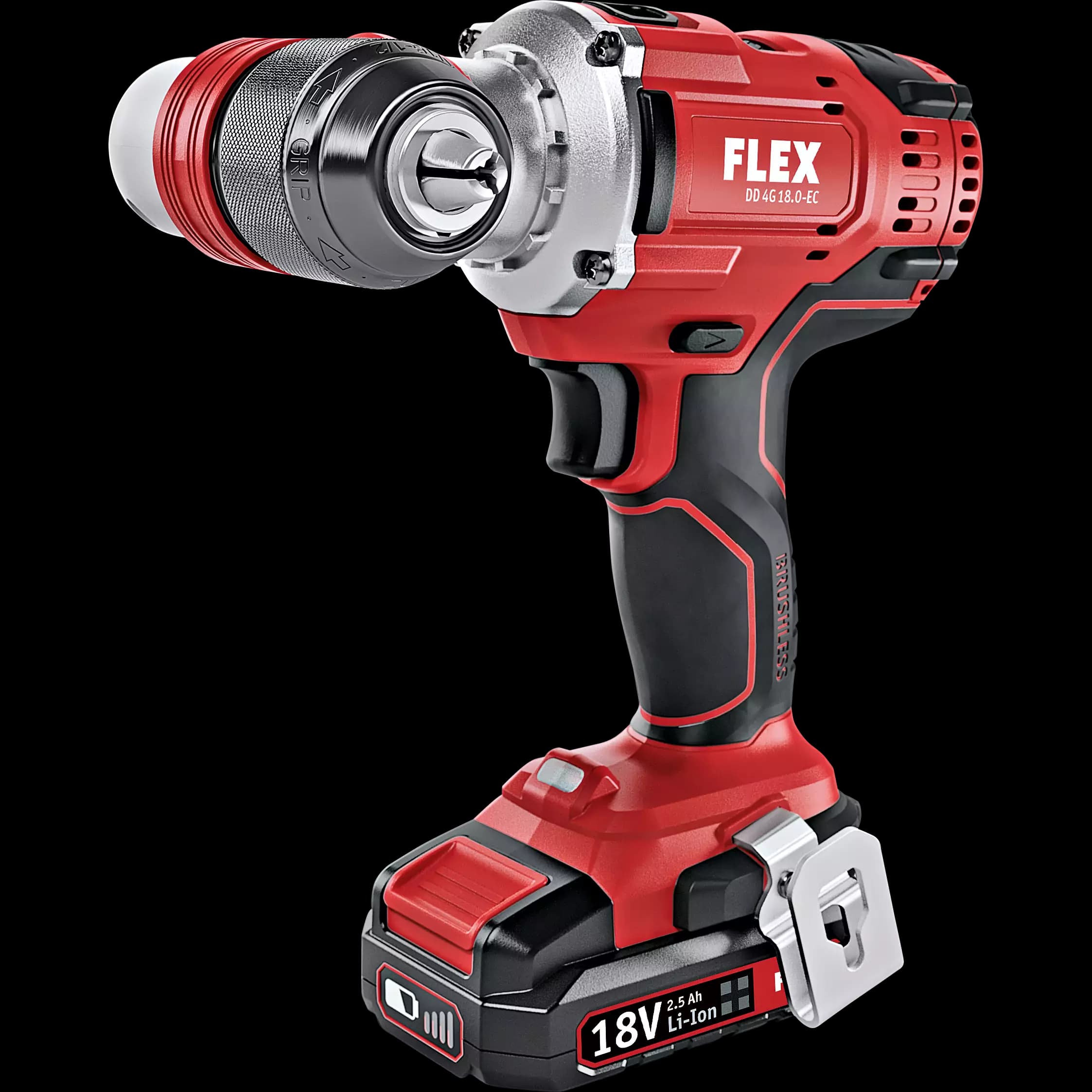

DD 4G 18.0-EC C
4-speed cordless drill driver 18,0 V
![](/_next/image?url=https%3A%2F%2Fhub.flex-tools.com%2F_f%2F556%2F55601e806609632727f344e5207f331e52da775f%2FPRO_PHO_MAI_dd-4g-18-0-ecc.webp&w=3840&q=75)
![](/_next/image?url=https%3A%2F%2Fhub.flex-tools.com%2F_f%2F303%2F3038b3e8539a5e56ed4afd783c59646fbd7aa88a%2FPRO_PHO_DET_DD-4G-18-0-EC-AP25_%2523SALL_%2523AIN_%2523V1.webp&w=3840&q=75)
![](/_next/image?url=https%3A%2F%2Fhub.flex-tools.com%2F_f%2F91b%2F91b2ddbc017baf484ef81df7f6b279999efc4880%2FPRO_PHO_DET_DD-4G-18-0-EC-AP25-BITHALTER_%2523SALL_%2523AIN_%2523V1.webp&w=3840&q=75)
![](/_next/image?url=https%3A%2F%2Fhub.flex-tools.com%2F_f%2F73a%2F73aecaeee87b1a08c24c7e7ed993de99d562a029%2FAPP_PHO_DIV_DD-4G-18-0-EC-01_%2523SALL_%2523AIN_%2523V1.webp&w=3840&q=75)
![](/_next/image?url=https%3A%2F%2Fhub.flex-tools.com%2F_f%2F511%2F511f063e0f6c1a0fe8d9899b0c2d2cae2173c085%2FAPP_PHO_DIV_DD-4G-18-0-EC-02_%2523SALL_%2523AIN_%2523V1.webp&w=3840&q=75)
![](/_next/image?url=https%3A%2F%2Fhub.flex-tools.com%2F_f%2Fda3%2Fda35a651ec91783ee816bbf55ea6e095f3742db2%2FPRO_PHO_DET_DD-4G-18-0-EC-AP25-BITHALTER-ZUSATZHANDGRIFF_%2523SALL_%2523AIN_%2523V1.webp&w=3840&q=75)
![](/_next/image?url=https%3A%2F%2Fhub.flex-tools.com%2F_f%2F2a8%2F2a8733ba39bf0b6296f2620e33bafc0f65b4eab2%2FPRO_PHO_DET_DD-4G-18-0-EC-AP25-WINKELADAPTER_%2523SALL_%2523AIN_%2523V1.webp&w=3840&q=75)
![](/_next/image?url=https%3A%2F%2Fhub.flex-tools.com%2F_f%2Fdfe%2Fdfe288ba27e80ece7c0d9c68ee897e246e19fb7a%2FPRO_PHO_DET_DD-4G-18-0-EC-AP25-ZUSATZHANDGRIFF_%2523SALL_%2523AIN_%2523V1.webp&w=3840&q=75)
Standard supply

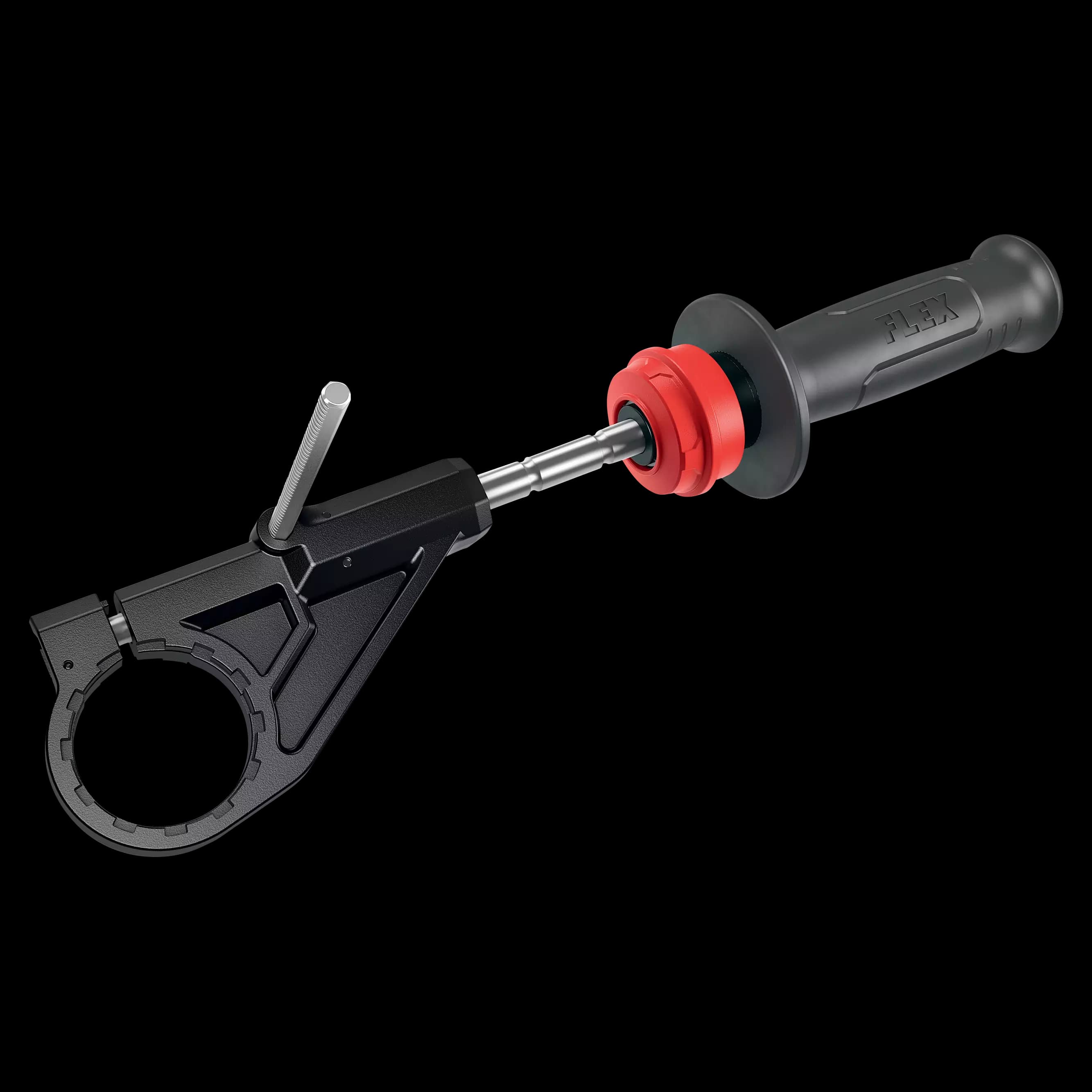

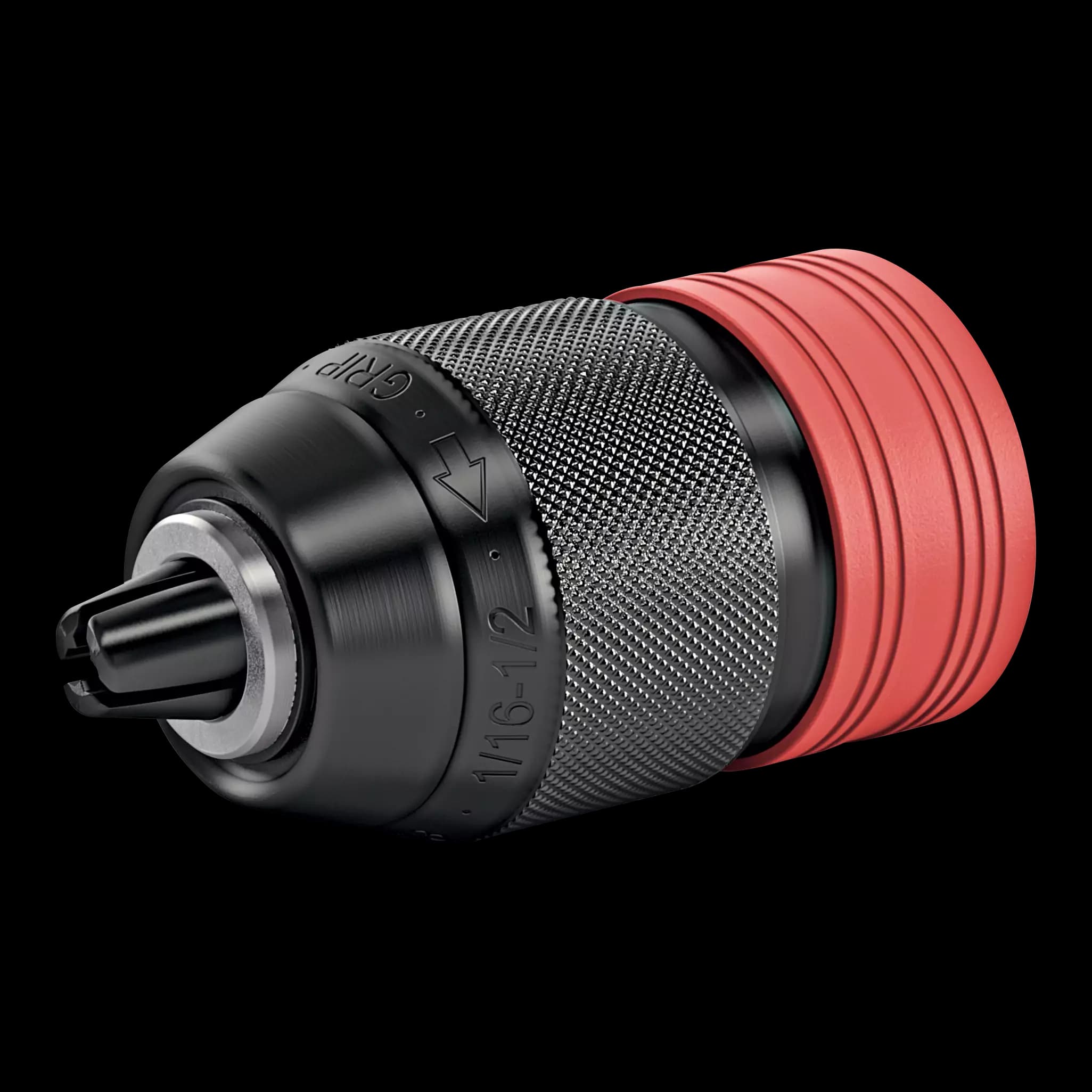

- 1× HZ-S DD 4G 18.0-EC (489417)
- 1× BV 18.0-EC (453994)

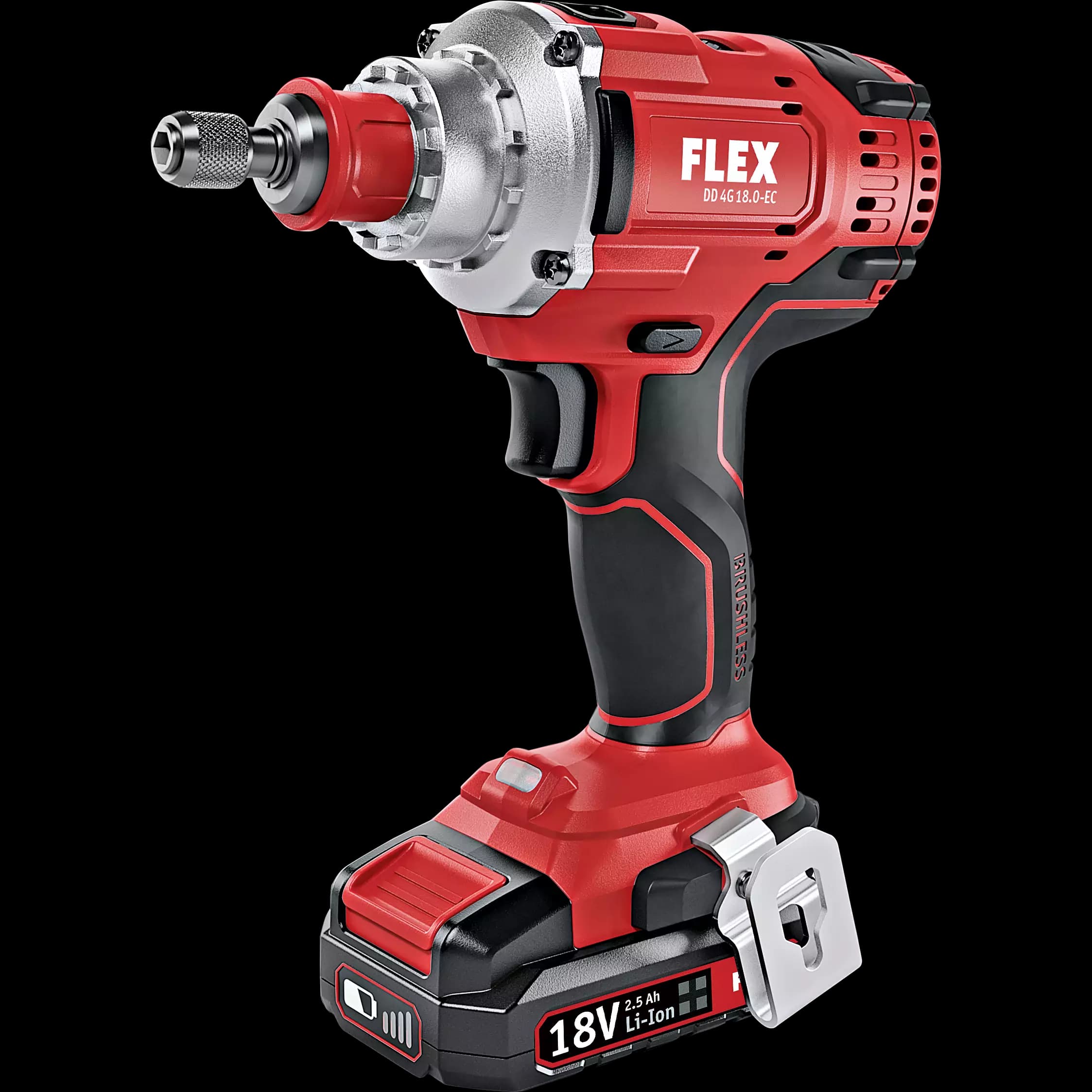

- 1× Bit holder DD/PD/ID 18.0 (430862)
- 1× Belt clip
Technical data
Battery voltage | 18 V |
---|---|
Battery capacity | 2,5 / 5,0 / 8,0 Ah |
No-load speed, 1st gear | 0 - 460 rpm |
No-load speed, 2nd gear | 0 - 910 rpm |
No-load speed, 3rd gear | 0 - 2100 rpm |
No-load speed, 4th gear | 0 - 4200 rpm |
Max. torque, hard | 135 Nm |
Max. torque, soft | 64 Nm |
Max. drilling diameter in wood | 76 mm |
Max. drilling diameter in steel | 13 mm |
Chuck clamping width | 1,5 - 13 mm |
Dimensions WxLxH | 215 x 75 x 240 mm |
Weight without battery pack | 1,5 kg |
Torque adjustment | 11 Steps |
